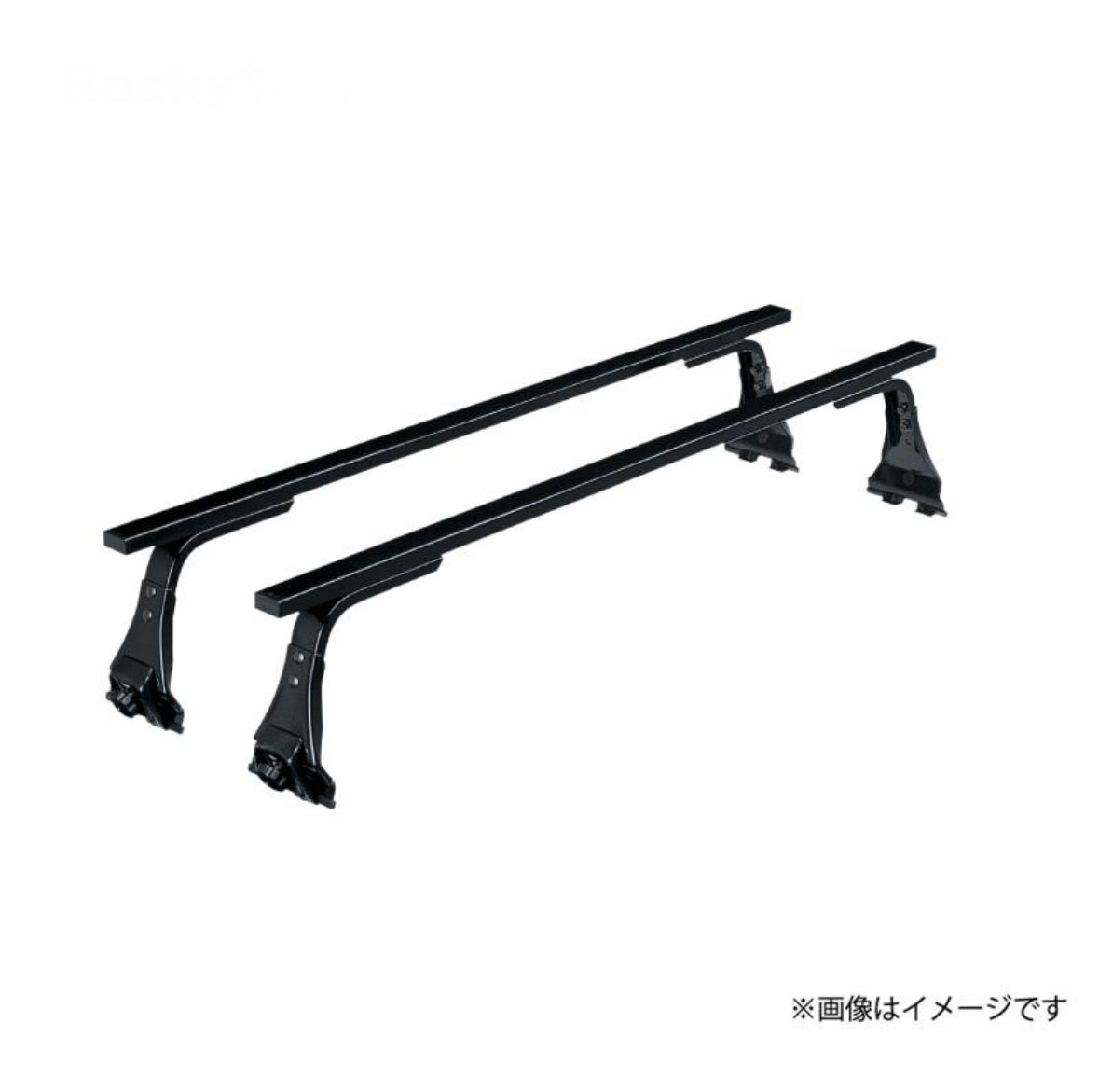

U10 Series/U40 Series Roof Rack (Rocky+) for Mitsubishi Bravo Standard Roof (Year:January.1989~March.1999)

Please make sure that the part is compatible with your vehicle before purchasing.

Product Information

Product Name: Roof Rack
Brand: Rocky+
Series: SGR Series
Part Number: SGR-01

Product Features

This heavy-duty roof rack is designed for carrying long cargo, warning lights, and other equipment while maximizing usable loading space.

The side-frame-free design allows wide or bulky cargo to be loaded flat without interference. Since the support legs are positioned beneath the frame pipes, the entire loading surface can be used efficiently.

The rack features three adjustable height settings (up to approximately 50 mm) to accommodate different roof heights and applications.

It can also be used as a base carrier for warning lights, speakers, and other accessories. (Compatible with the optional GP Series attachments, sold separately.)

The durable black painted steel construction provides excellent strength and long-lasting corrosion resistance.

2-Bar Design Features

Unlike one-piece roof racks, the 2-bar design consists of separate front and rear bars.

To reduce stress on the roof gutters and improve overall rigidity, it is recommended to securely fasten long cargo to both bars so the load acts as a single integrated unit.

Included Items

• Roof Rack Set × 1 set (2-Piece Set)

Compatible Vehicles

Mitsubishi Bravo

Model: U10 Series / U40 Series
Roof Type: Standard Roof
Model Year: January 1989 – March 1999

Specifications

Installation

When the roof width is 1,160 mm or greater, the frame pipes will no longer protrude beyond the roof width.

Note:

Please check the part number before purchasing.

Compatibility may vary depending on the model year, grade, and vehicle specifications.

This product is an aftermarket replacement and may differ slightly in appearance or finish from the original factory part.

Safety Precautions

• Do not exceed the maximum load capacity of 60 kg.
• Load and unload cargo carefully to avoid impact damage to the roof rack.
• Distribute cargo evenly across the rack.
• Secure all cargo firmly before driving.
• Observe all speed limits and avoid sudden acceleration, hard braking, or sharp cornering while carrying cargo.
• Check all mounting bolts and fasteners before and after driving, and retighten if necessary.
• Be aware that long cargo may interfere with the rear hatch when opening or closing it.
• The overall vehicle height increases when the rack and cargo are installed. Use extra caution when entering garages, parking structures, tunnels, or other areas with height restrictions.
• Do not place cargo directly on the mounting legs or side frame components.

We are not responsible for any labor costs for installation, removal, or repair.
