S500 Series Daihatsu Hijet Truck / Jumbo (Early Model) – LED Reflectors, 2 Functions with Reflective Feature, 2 Colors Available

S500 Series Daihatsu Hijet Truck / Jumbo (Early Model) – LED Reflectors, 2 Functions with Reflective Feature, 2 Colors Available

¥11,748 JPY
¥12,922 JPY ¥11,748 JPY
Sale Sold out
Tax included.
Color
With Coupler?

Product Information

  • Product Name: LED Reflectors, 2 Functions with Reflective Feature

  • Set Contents: Main body (Left & Right)
    Optional (sold separately): Power supply couplers (2 pcs), reflector-side terminals, sleeves, and installation manual (In Japanese)

  • Condition: New / Unused

Compatible Vehicles

  • DAIHATSU:

    • Hijet Truck / Hijet Jumbo (S500P / S510P, Early Model – until Dec. 2021)

  • TOYOTA:

    • Pixis Truck (S500U / S510U, Early Model – until Dec. 2021)

  • SUBARU:

    • Sambar Truck (S500J / S510J, Early Model – until Dec. 2021)

Note: Not compatible with Dump or Panel Van models.

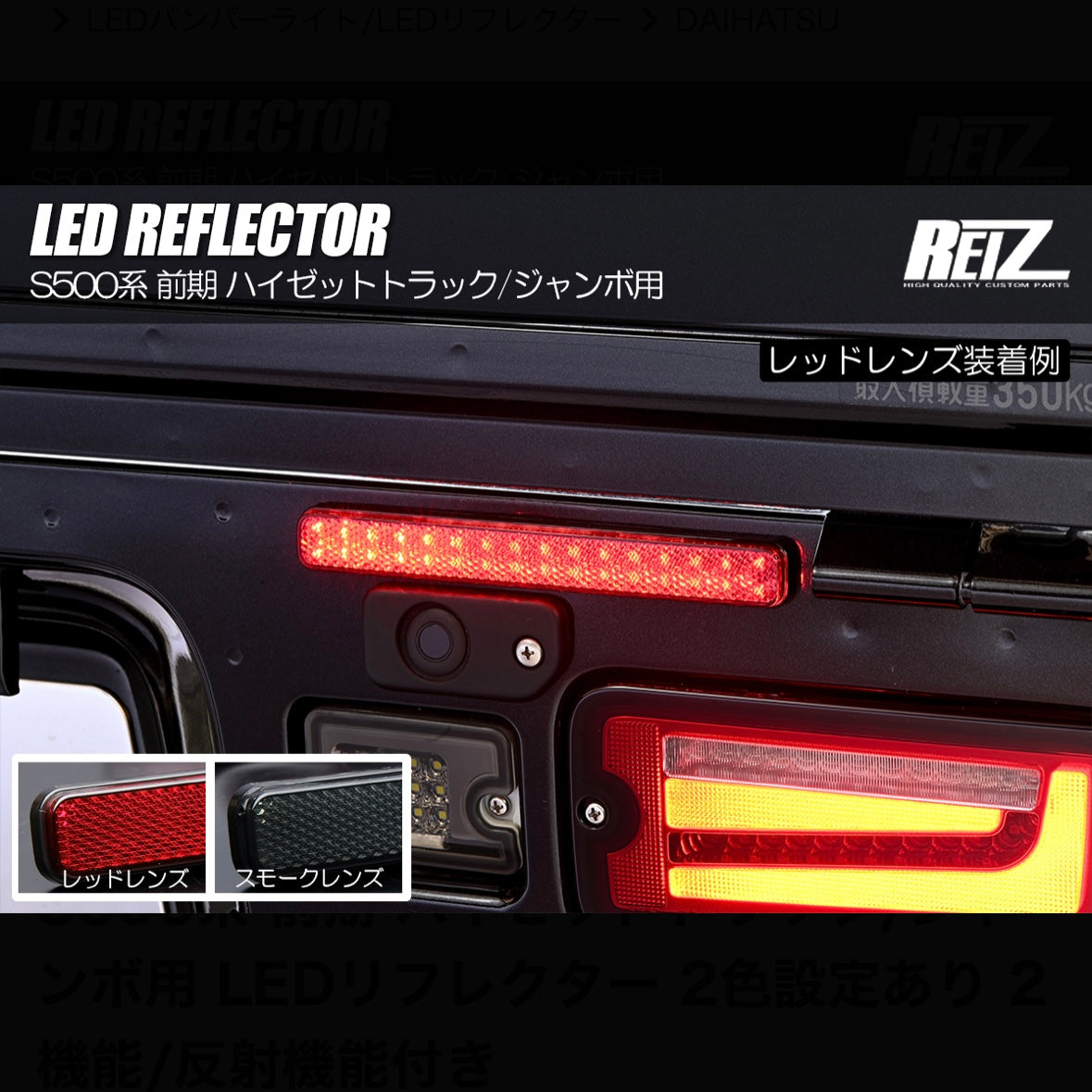

Color Variations

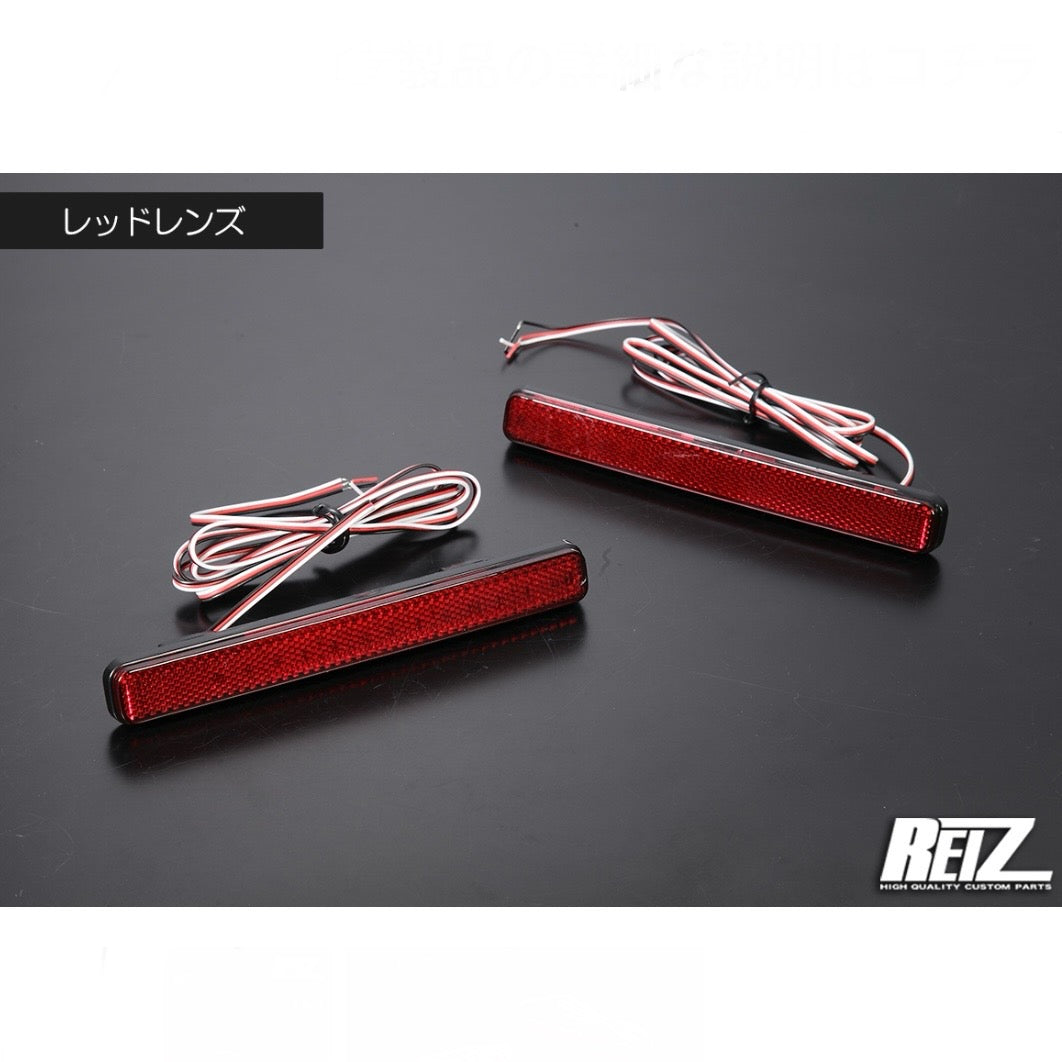

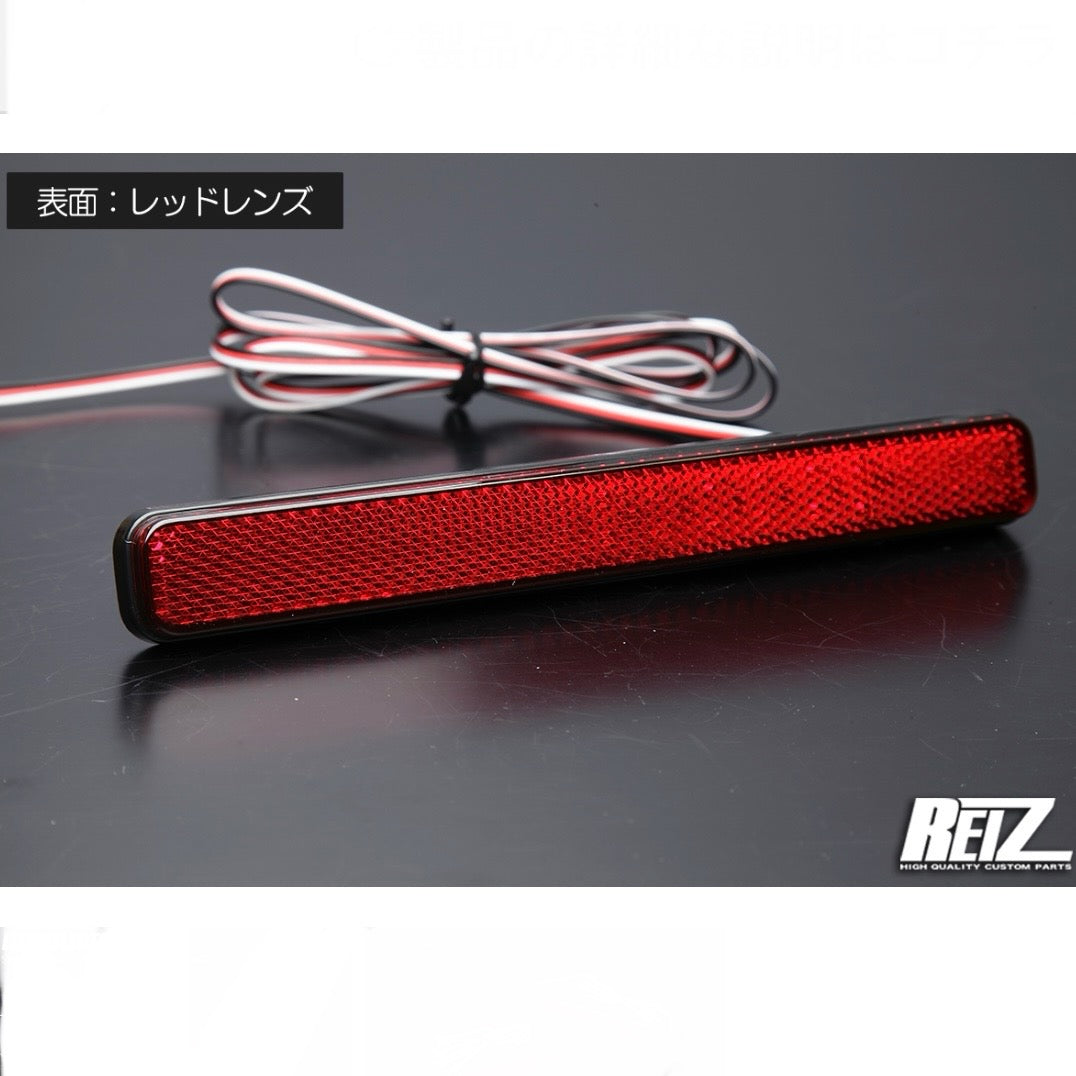

  • Red Lens

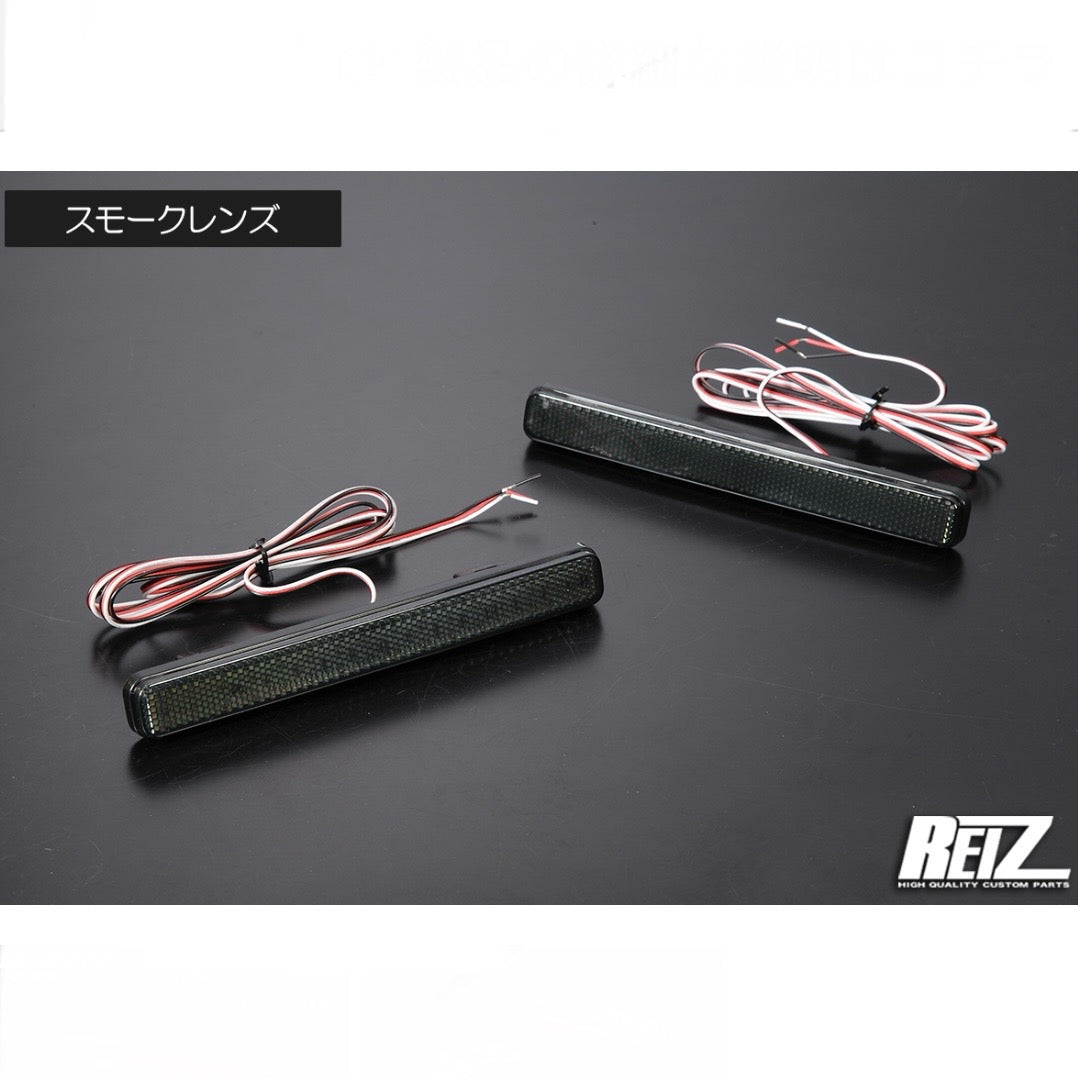

  • Smoked Lens
    (Note: Smoked lens does not meet legal safety standards requiring red reflective light output.)

Product Features

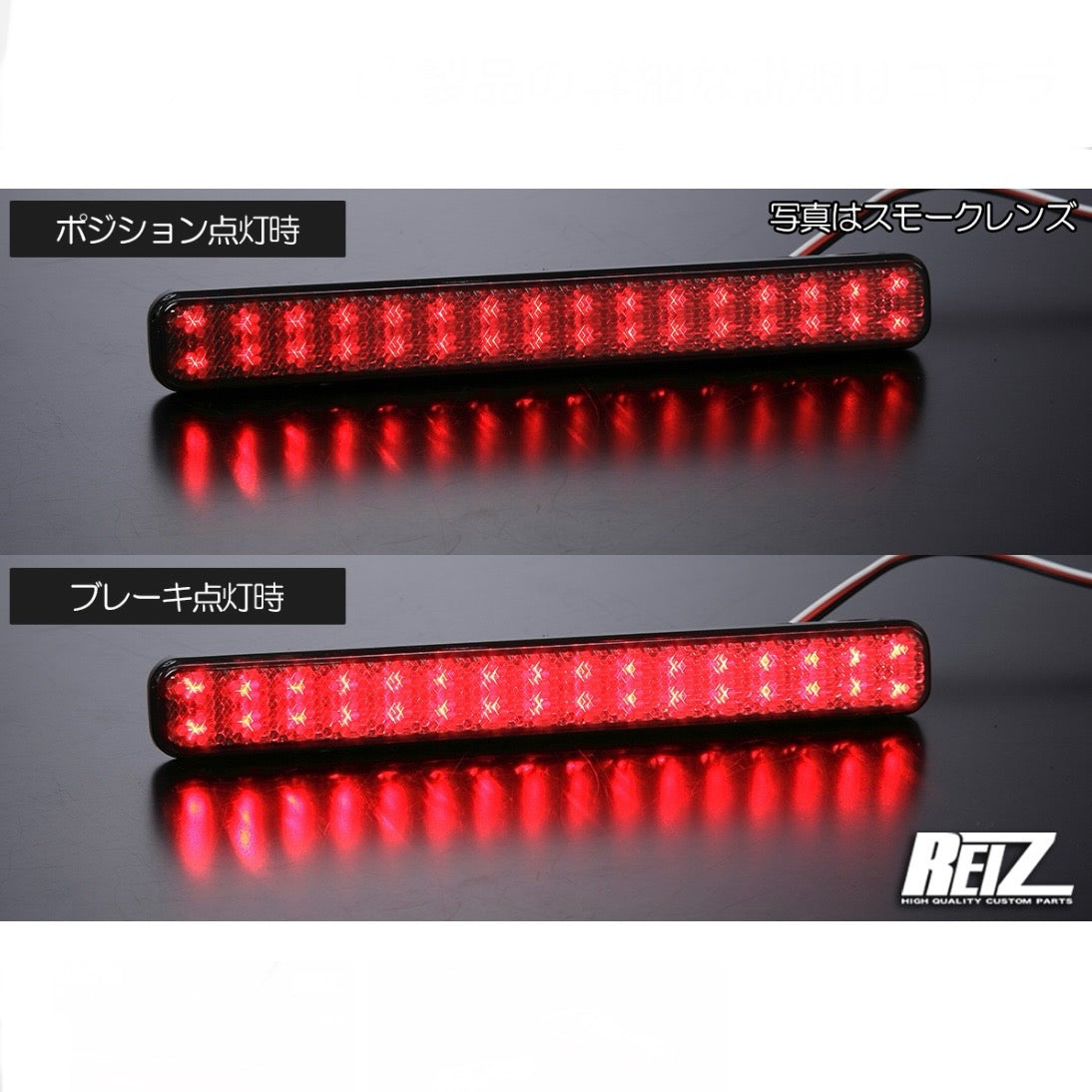

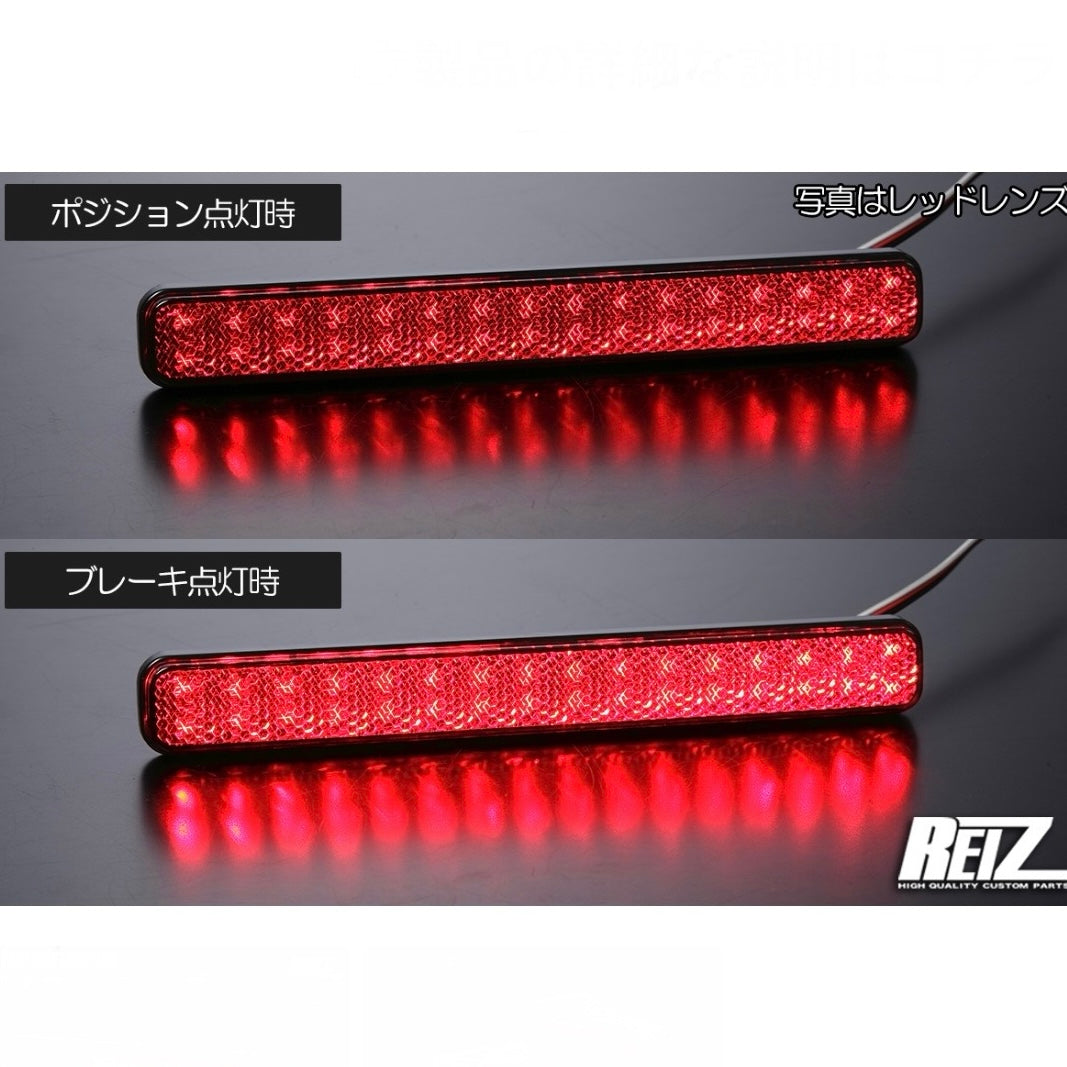

  • 2-function LED reflector: Dual-stage illumination suitable for both position and brake lights. Wiring allows for use as position only or brake only.

  • Reflective function: Lens features a reflective cut design, enhancing light diffusion and providing reflectivity.
    Note: Smoked lens version does not meet the legal requirement for red reflective light.

  • OEM replacement installation: Installs the same way as the genuine part, no modification of the vehicle required.

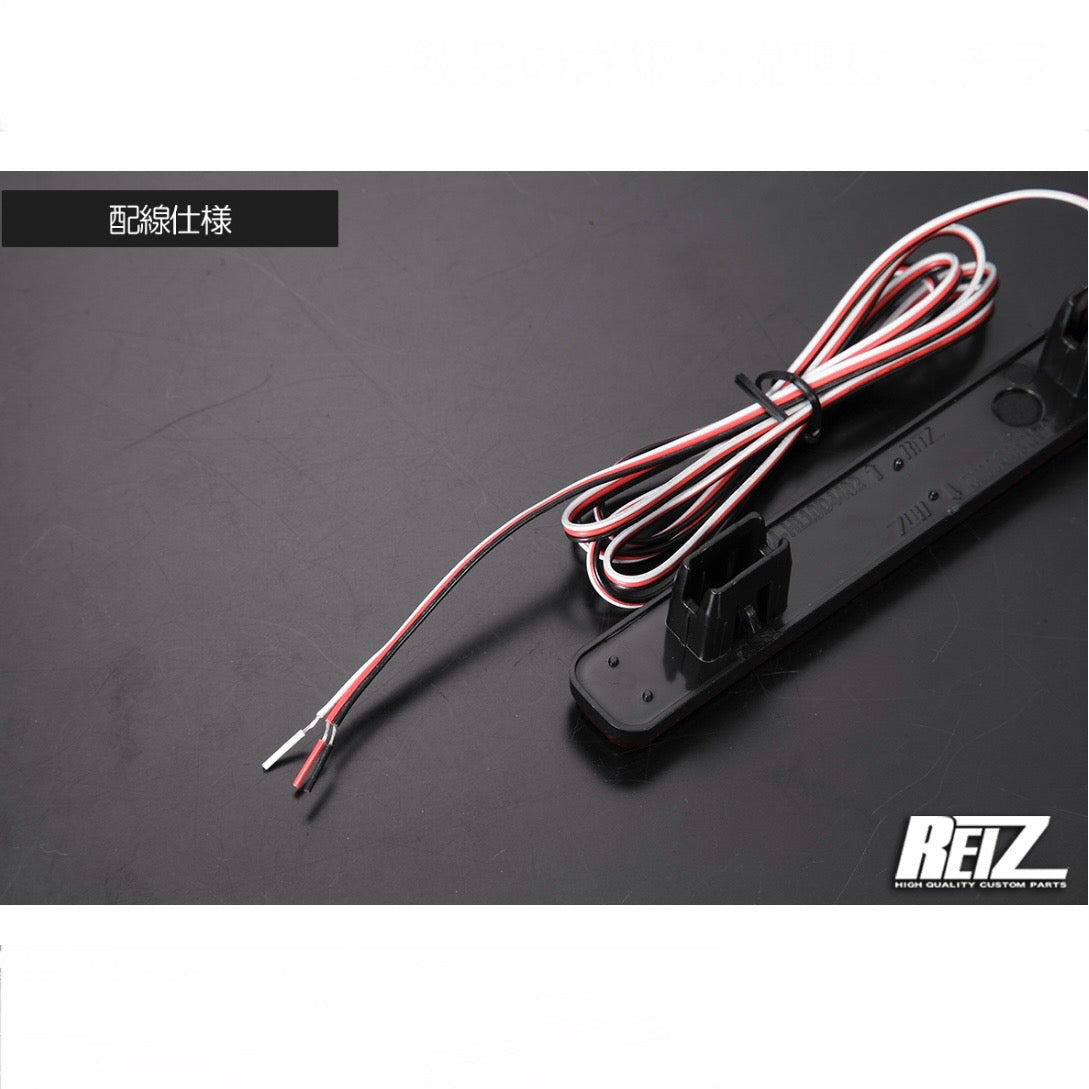

  • Wiring specification:

    • Red: + for brake light

    • White: + for position light

    • Black: Ground (-)
      Use a tester to identify and connect to the corresponding wires of the tail lamp.

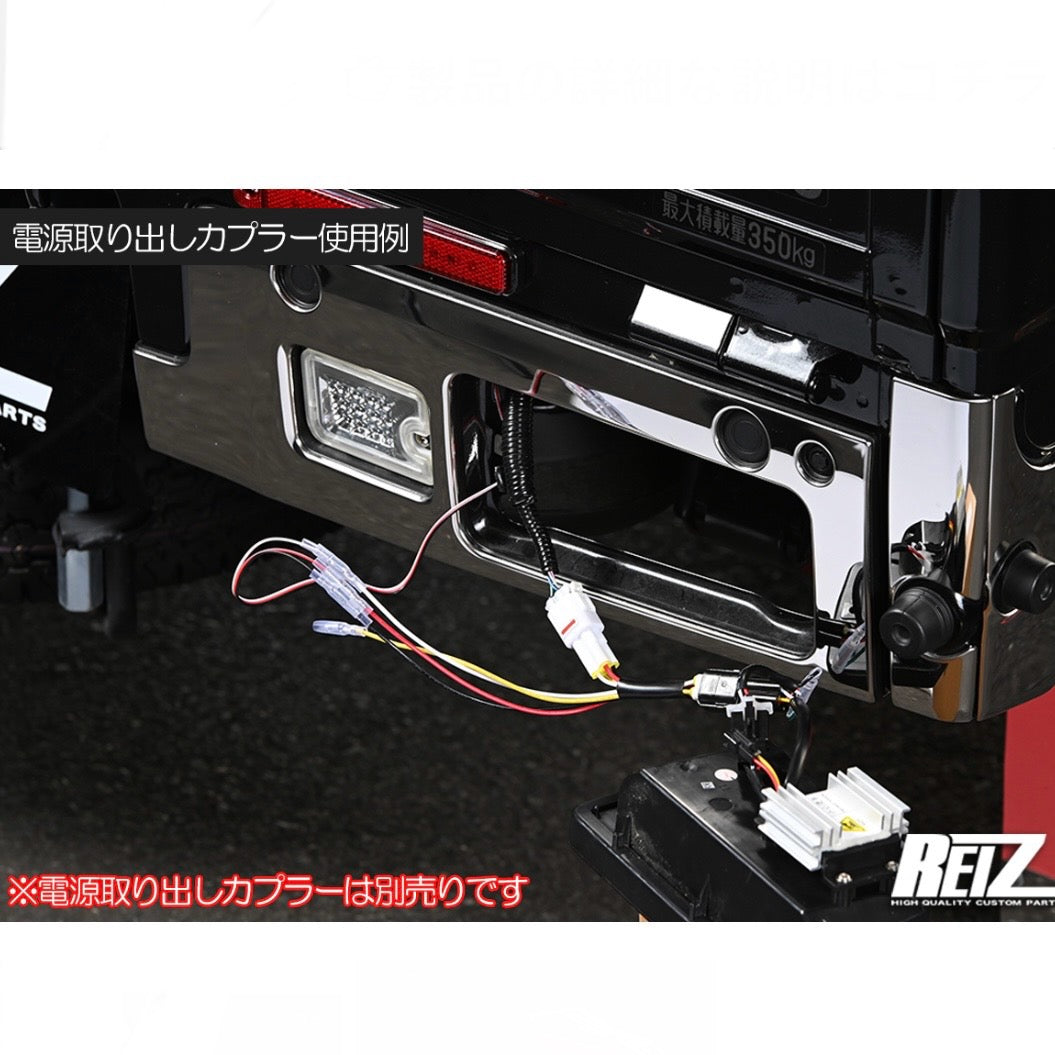

  • Optional power supply coupler (sold separately): Allows power to be sourced without damaging vehicle wiring. Includes necessary terminals and sleeves.

Notes

  • Brightness may appear different depending on the viewing angle due to the reflector cut design. This is not a product defect.

  • Fitment may feel tight when installing; insert one side at a time and press firmly to secure.

  • We do not cover any labor costs incurred during installation.

Shipping & Returns

  • This product may be subject to customs duties or import taxes. Any such fees are the responsibility of the customer.

  • Please note that it may take up to one week to ship your order (handling time).

  • Due to international shipping, we are unable to accept returns or refunds for reasons attributable to the customer.
