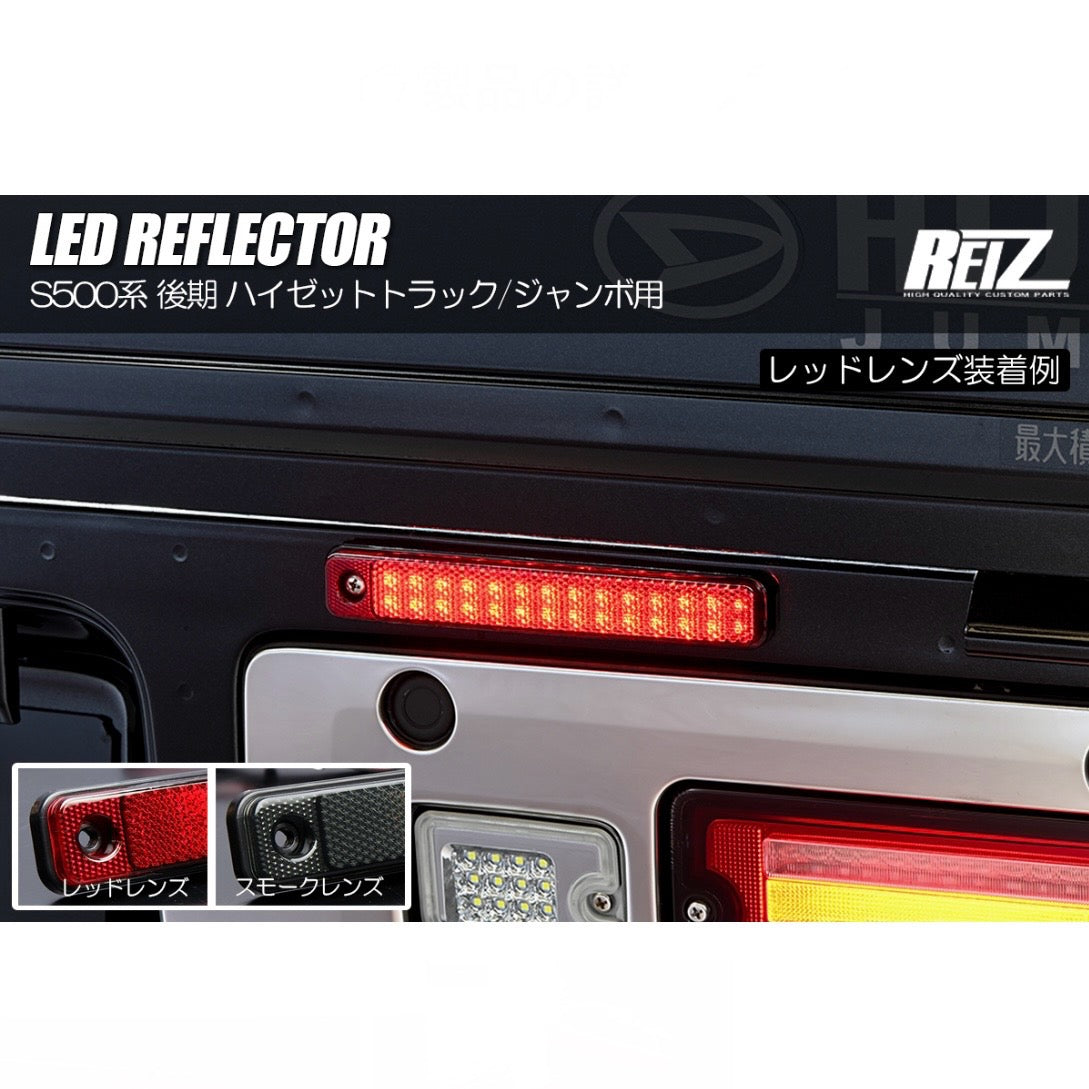

S500 Series Late Model Hijet Truck / Jumbo LED Reflectors [Red / Smoked, 2 Functions with Reflective Feature]

Product Information

• Product Name: LED Rear Reflectors [2 Color Options, Dual-Function with Reflective Lens]

• Material: ABS Resin + LED Unit

• Set Contents: Main body (Left & Right)

• Condition: New / Unused

• Variations:

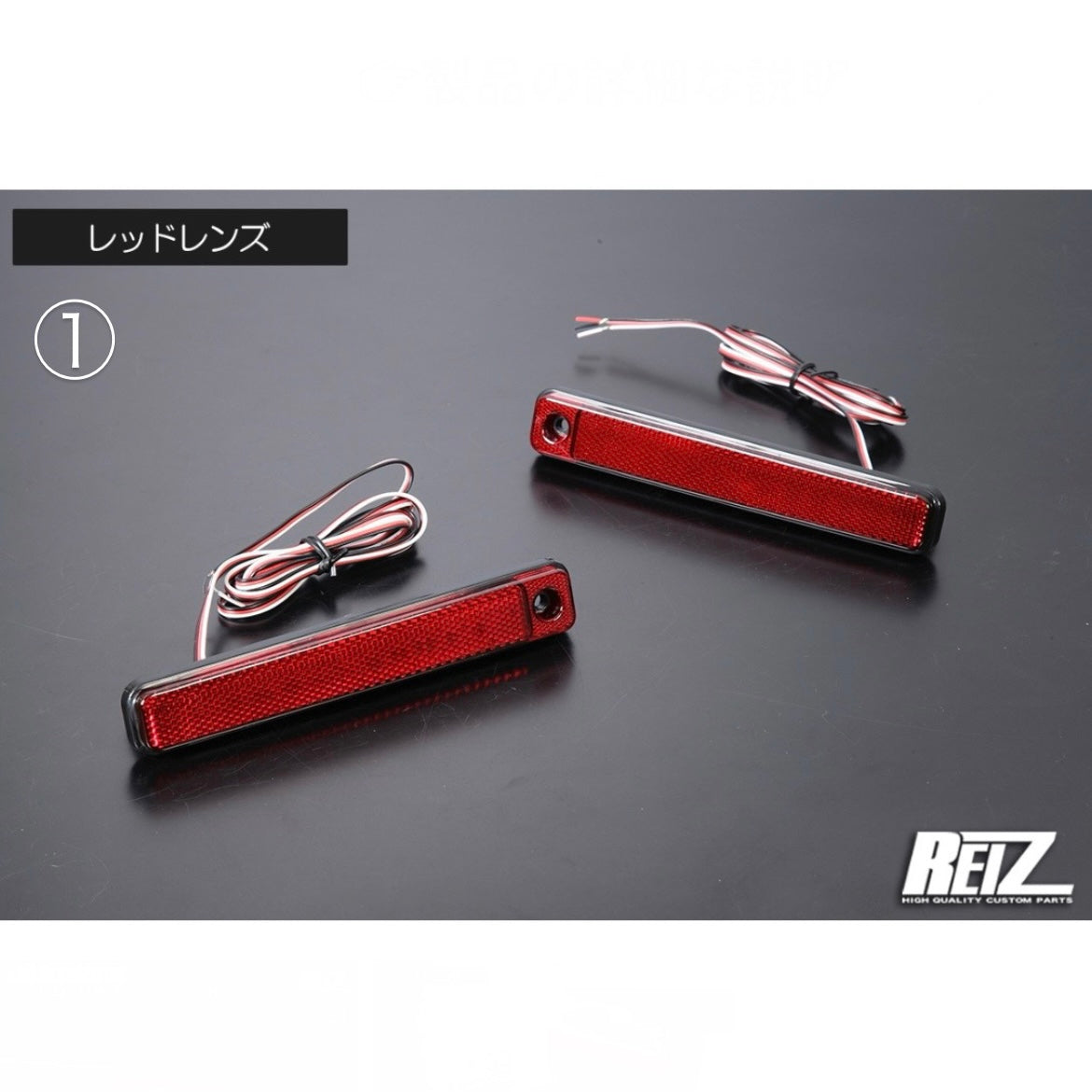

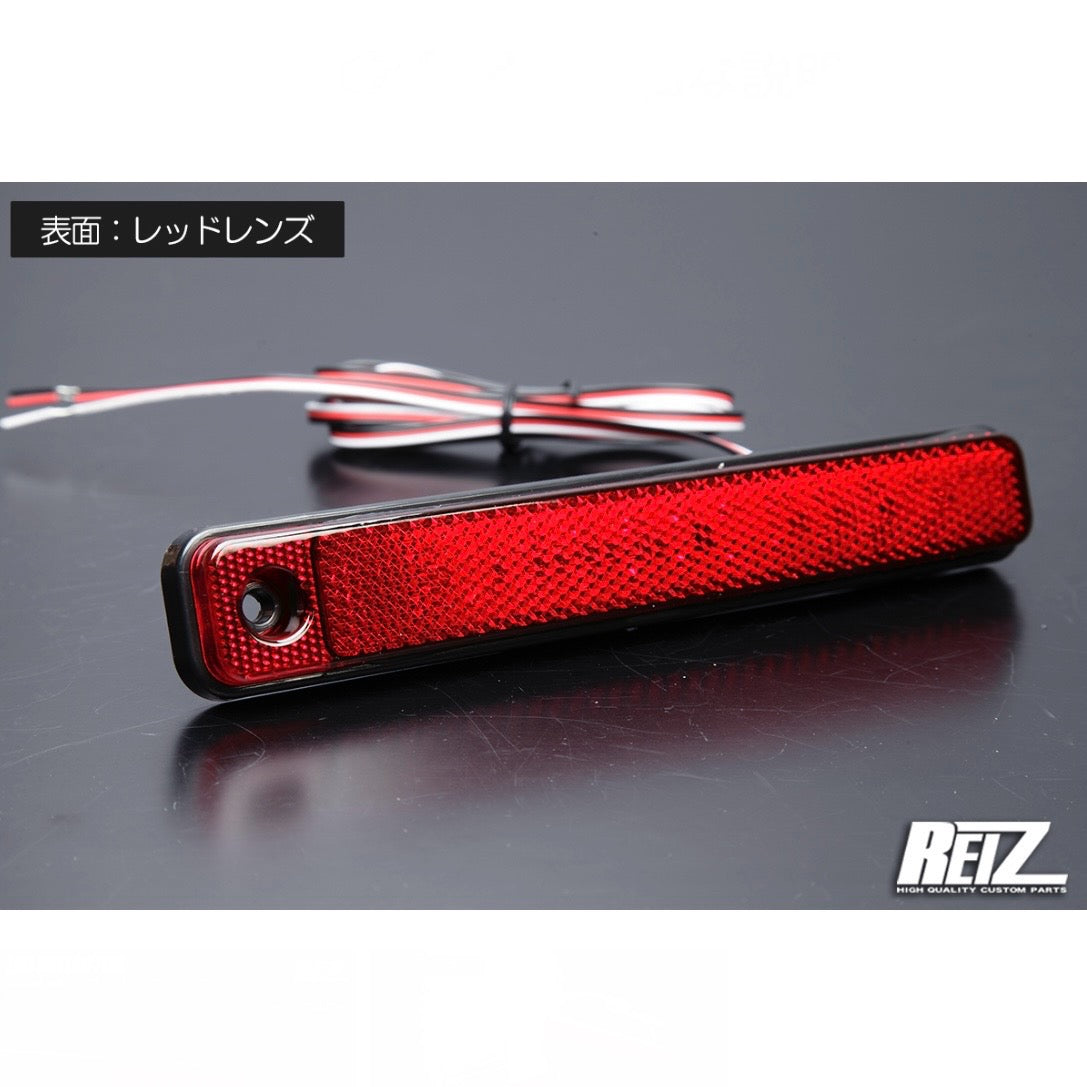

  • Red Lens

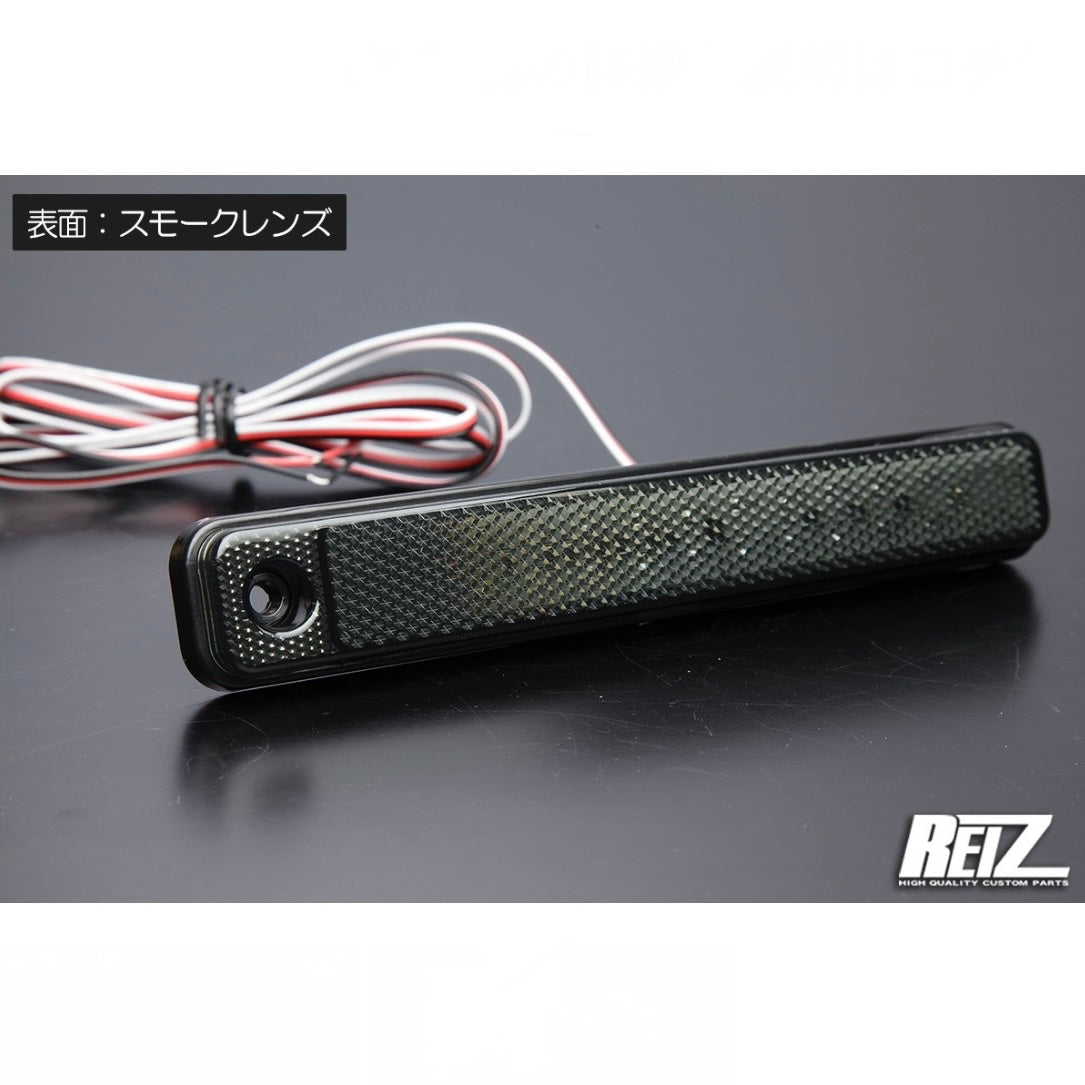

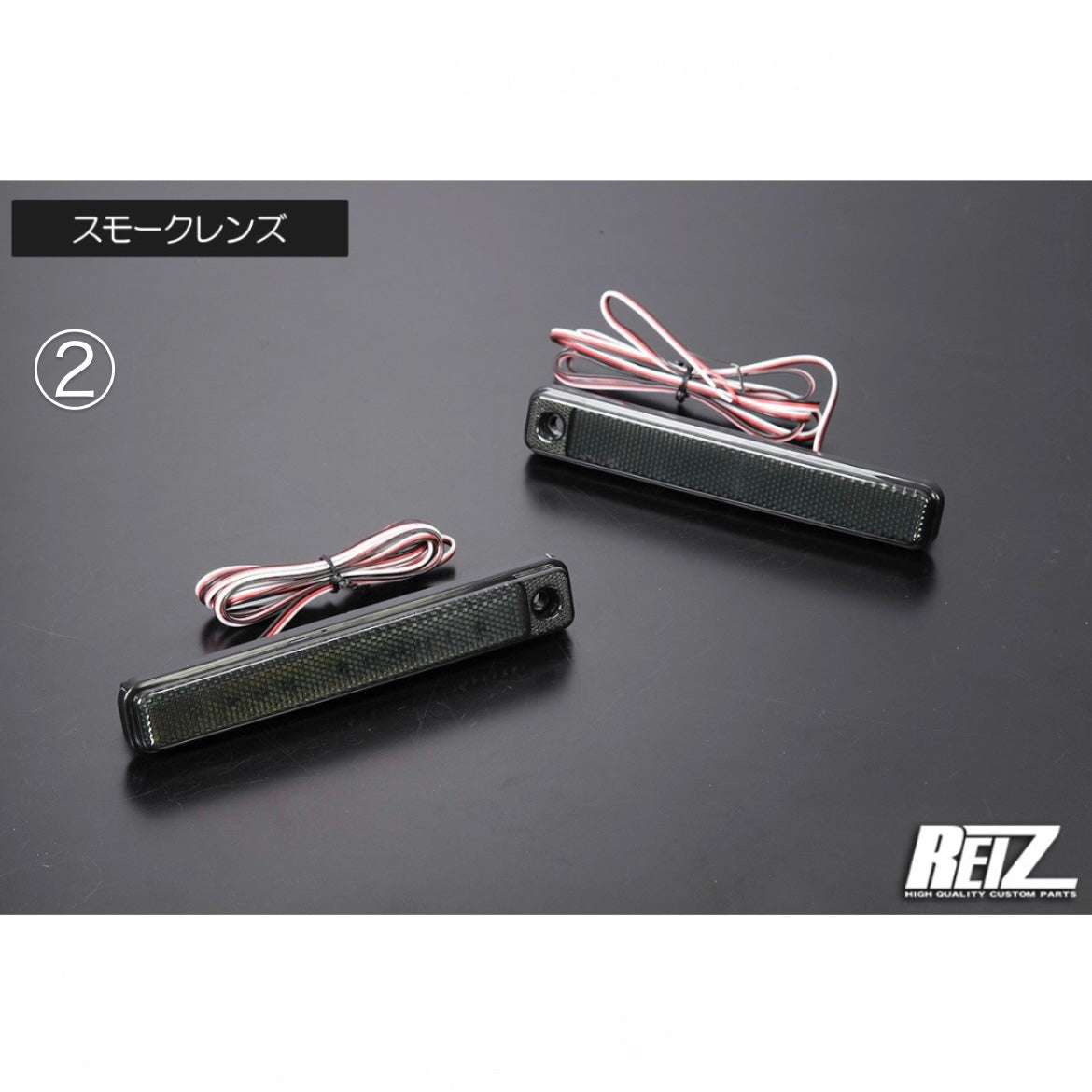

  • Smoked Lens (*Note: Does not meet safety requirement “reflected light must be red.”)

Applicable Models
【DAIHATSU】

• Hijet Truck (S500P / S510P) Late Model (from Dec. 21, 2021–)

• Hijet Jumbo (S500P / S510P) Late Model

【SUBARU】

• Sambar Truck (S500J / S510J) Late Model

• Sambar Truck Grand Cab (S500J / S510J) Late Model

【TOYOTA】

• Pixis Truck (S500U / S510U) Late Model

Not compatible with Dump or Panel Van models.

Product Features

• Dual-Function LED Reflectors

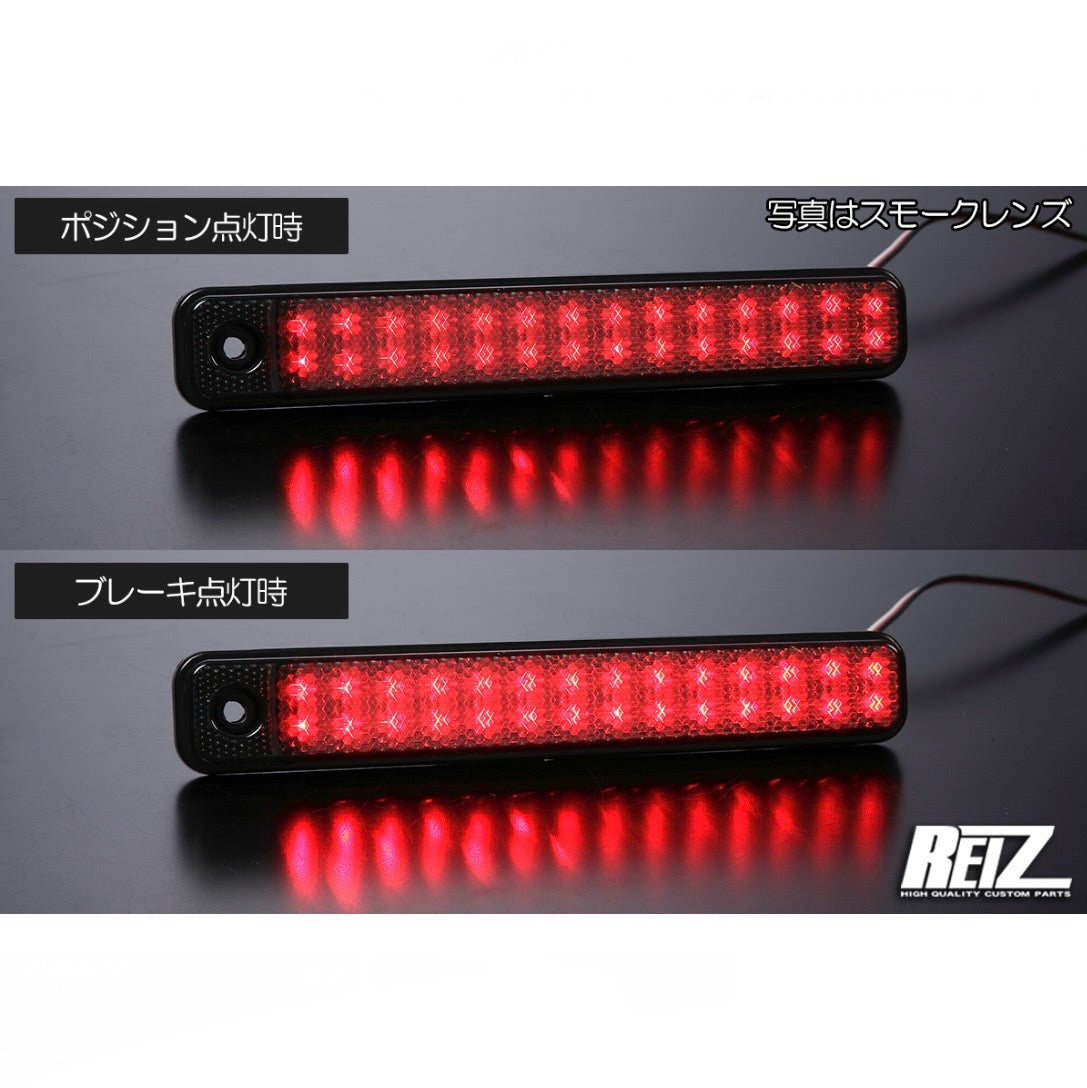

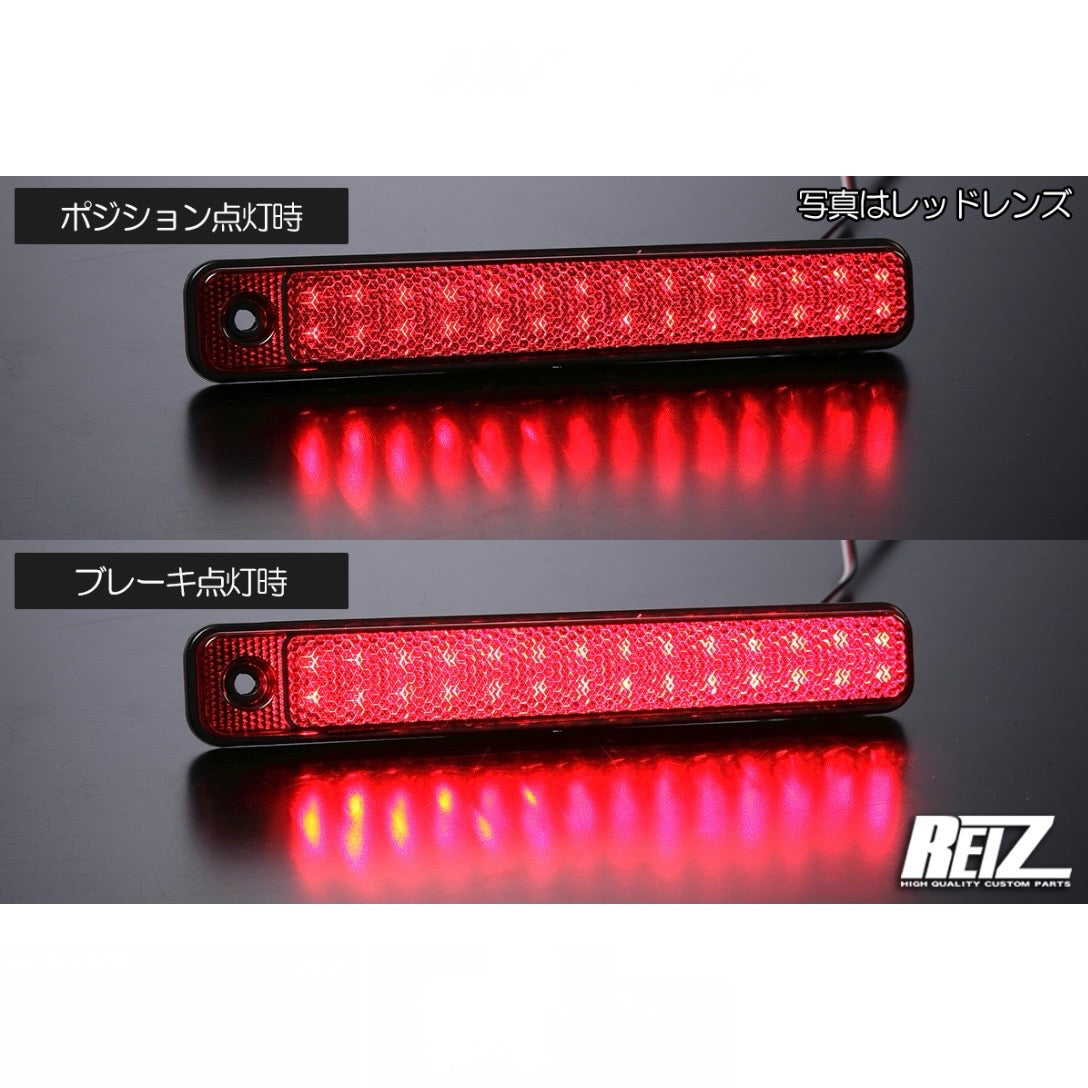

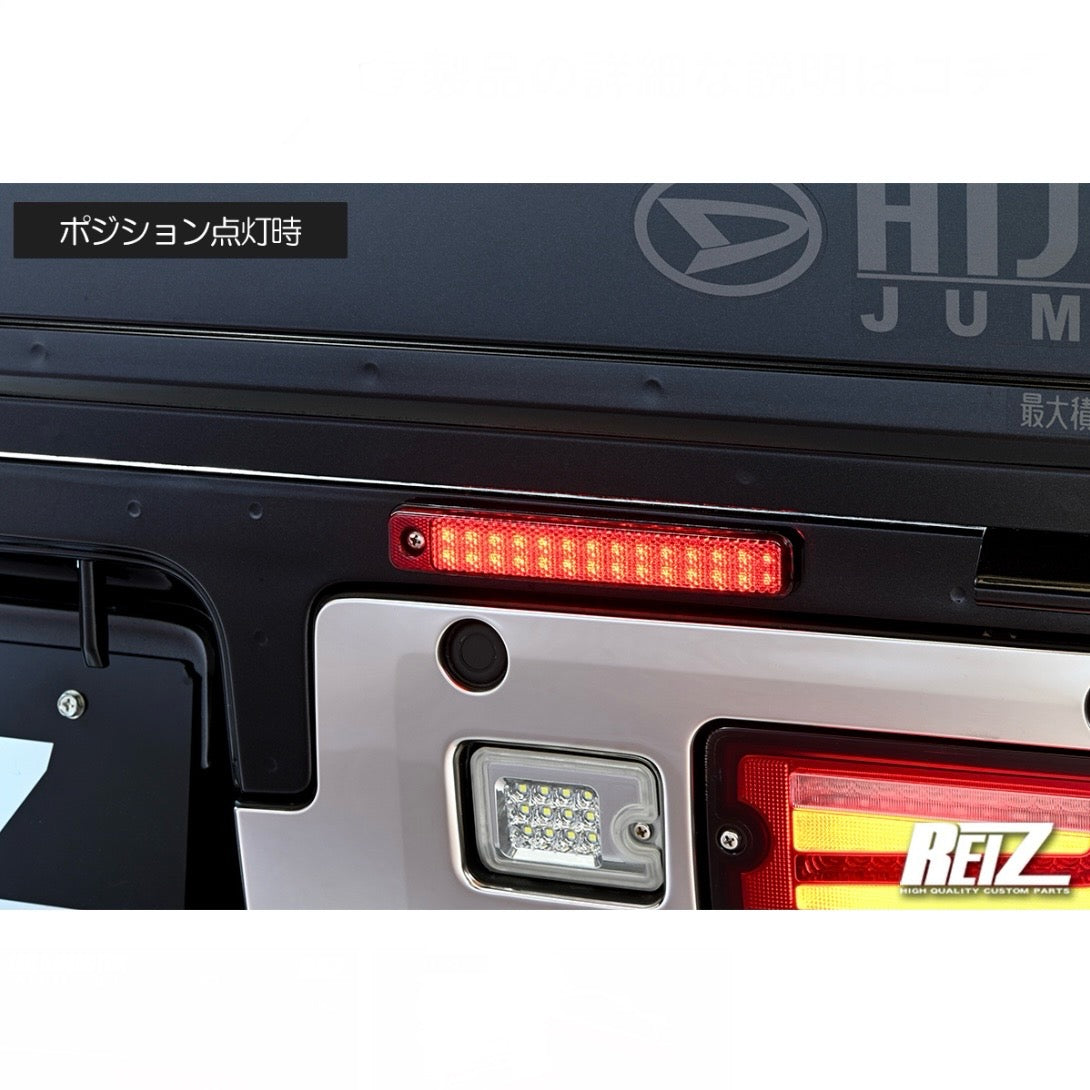

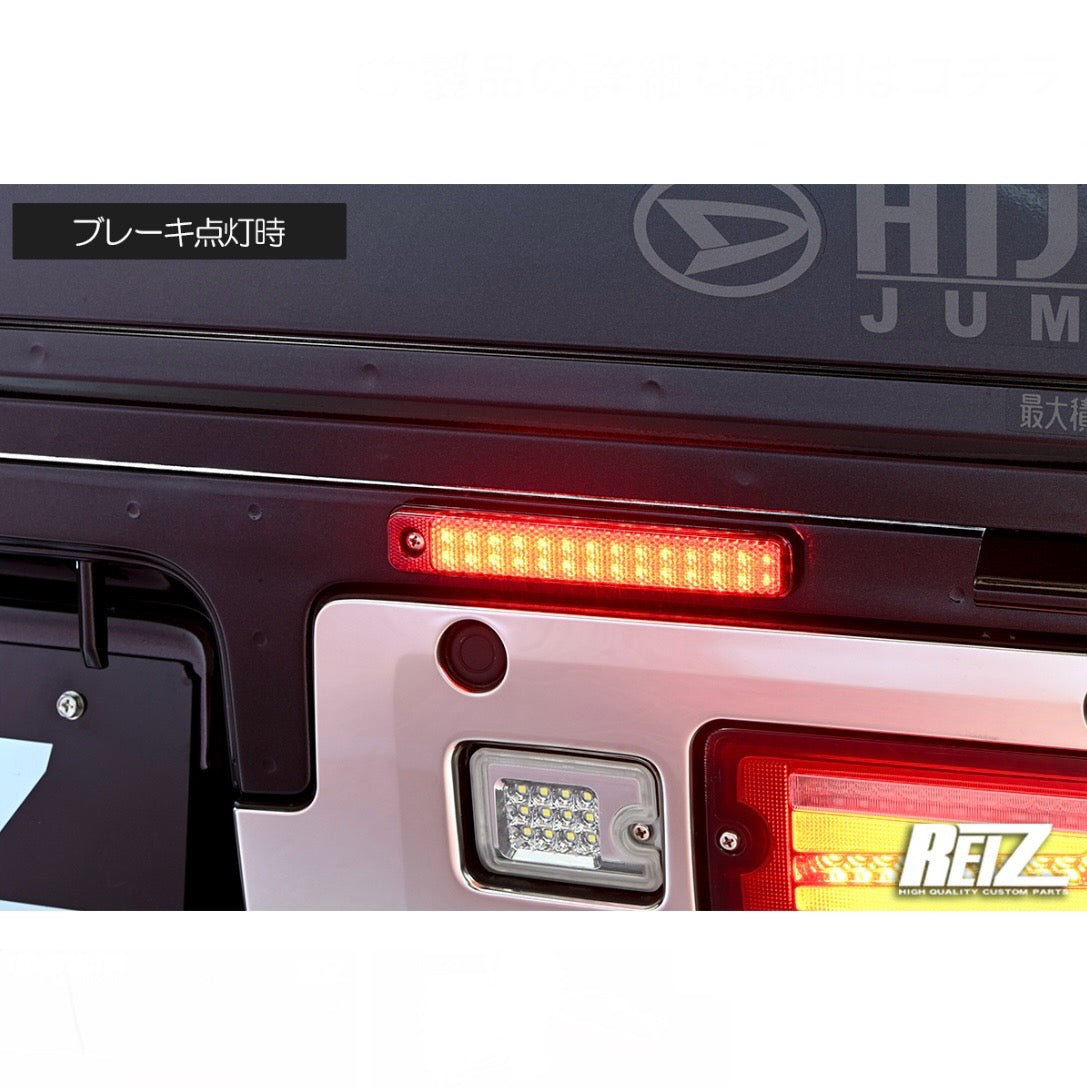

  Two-stage illumination for position and brake lights.
  Wiring options allow use as position-only or brake-only if desired.

• Reflective Function
  Lens surface features a reflective cut design, ensuring proper light diffusion.
  Note: Smoked lens variation does not meet the legal requirement for red reflective light.

• OEM-Style Installation

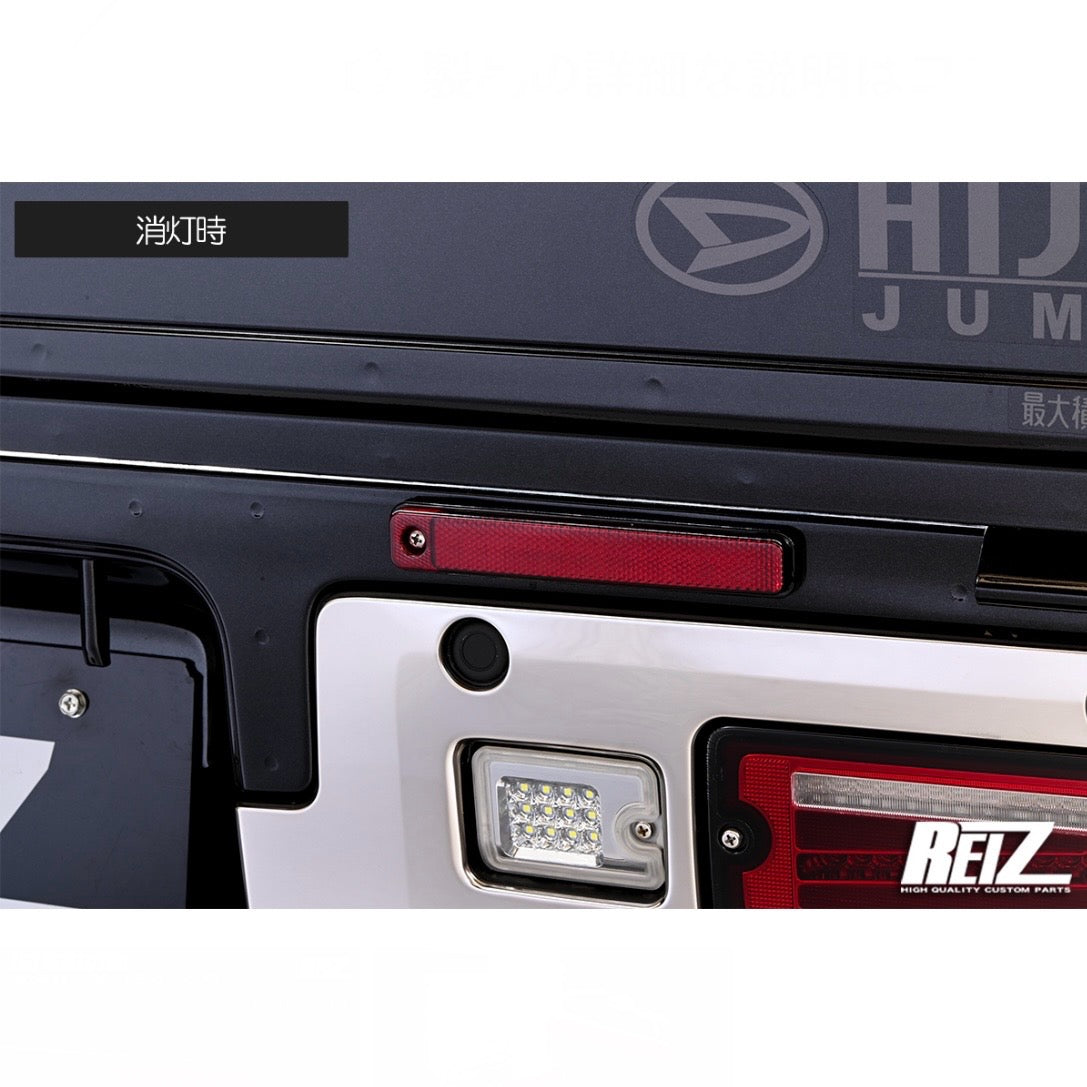

  Direct replacement type using the same mounting method as OEM parts.
  No modification to the vehicle body required.

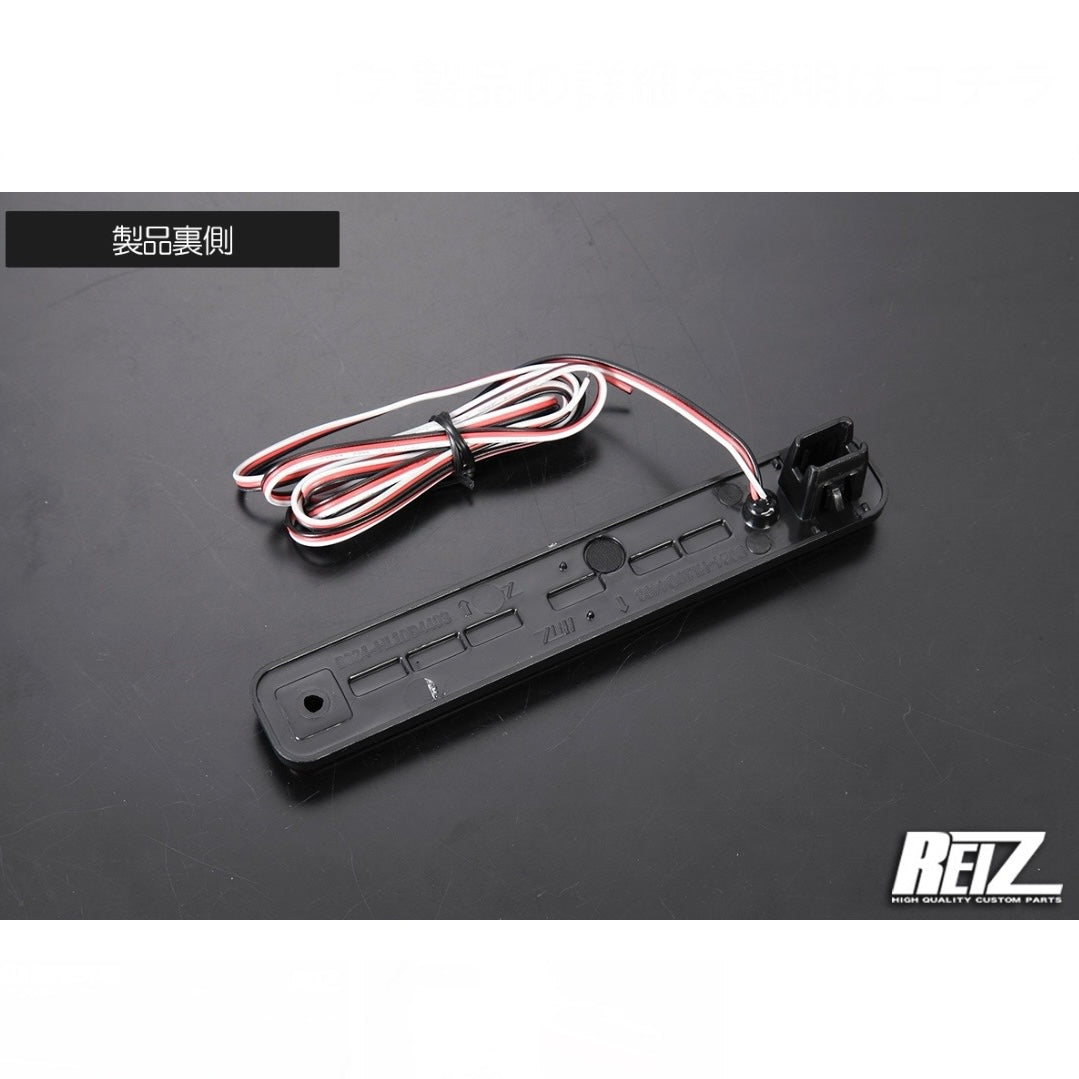

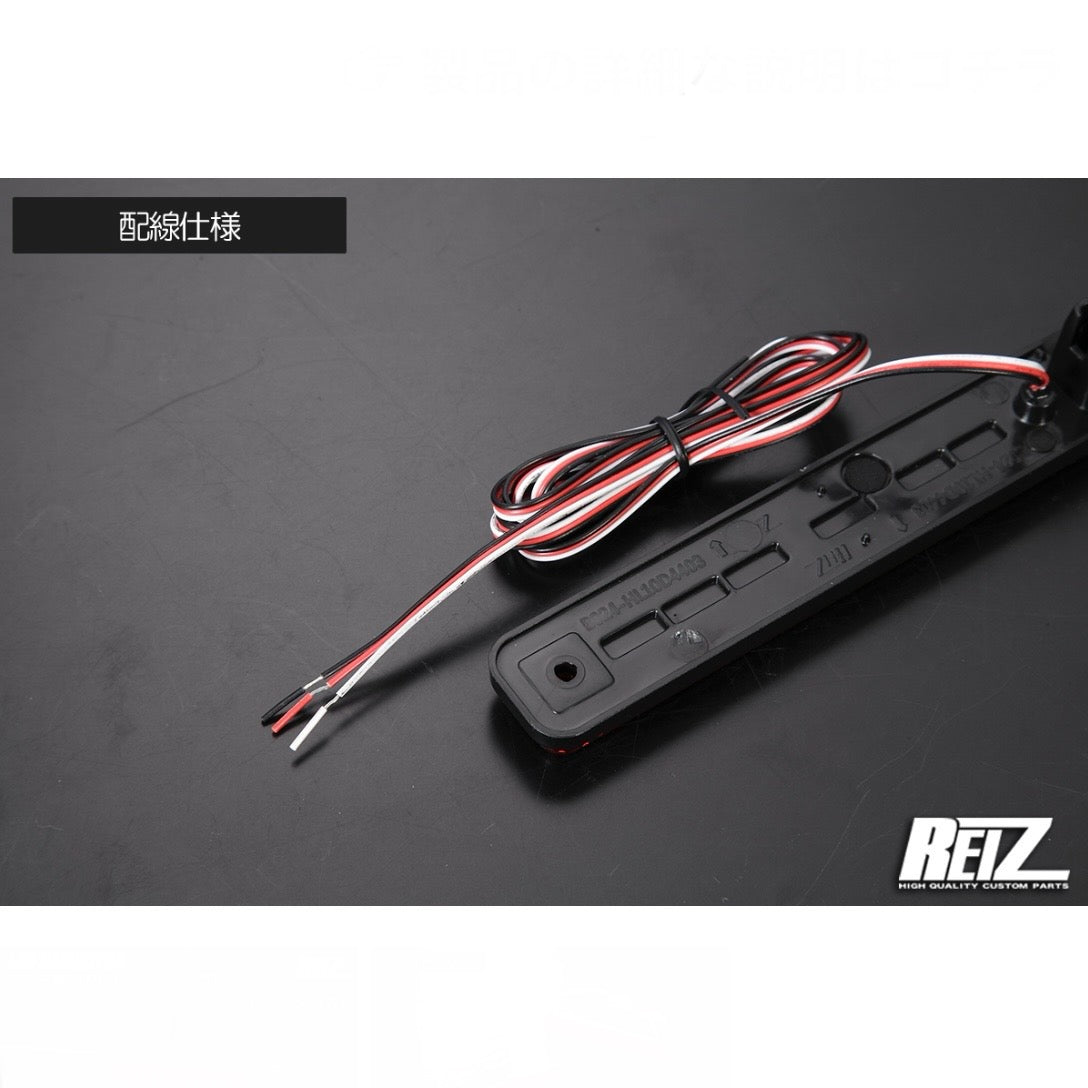

• Wiring Specifications

  • Red Wire → Connect to Brake +

  • White Wire → Connect to Position +

  • Black Wire → Ground –
    Use a tester to confirm correct tail lamp wiring before connection.

• Optional Power Extraction Coupler (Sold Separately)
  Allows power supply without damaging vehicle wiring.
  Includes coupler (x2), connector terminals for reflector side, and sleeves.
  Special set pricing applies only when purchased together with reflectors.

Cautions

• Due to the reflective cut lens, brightness may appear different depending on viewing angle. This is not a defect.

• When installing, fitting may feel tight—insert one side at a time and press firmly to secure.
